High Silica Plain Cloth for 1000℃ temperature resistance

Short Description:

The product is soft, light and thin. It is a heat-resistant and insulating special glass fiber fabric. It is easy to process and has a wide range of uses. It is mainly used as a base material for high temperature resistance, ablation resistance, heat insula- tion and thermal insulation materials.

Product Detail

Product Tags

Product Description

High silica plain cloth is a kind of heat-resistant, insulating and soft special glass fiber mesh fabric, which can be used at 1000 ℃ for a long time, and the instantaneous heat-resistant temperature can reach 1450 ℃.

It is mainly used as reinforcing substrate for ablation-resistant and high-temperature resistant composite materials and the outermost layer of fire protection clothing


It is mainly used to strengthen various resins, as high temperature and ablation resistant materials (such as engine nozzles, throat linings), and reinforced PTFE used for wave-transmitting materials (such as aircraft radomes) substrates for com- posite materials etc.

Now some manufacturers are also starting to use high silica plain weave fabric as the outermost layer of white fire protection suits. Due to its lighter weight, it is also used for lighter plain weave fabrics such as BWT260 and even BWT100 in fire protection scenarios that require lightness.

Technical Data Sheet

Spec Mass (g/m²) Density (ends/25mm) Thickness (mm) Width (cm) Tensile Strength (N/25mm) SiO₂(%) Heat Loss(%) Weave
Warp Weft Warp Weft
BWT260 240±20 35.0±2.5 35.0±2.5 0.260±0.026 82 or 100 ≥290 ≥190 ≥96 ≤2 Plain

Note: Can be customized according to customer requirements.

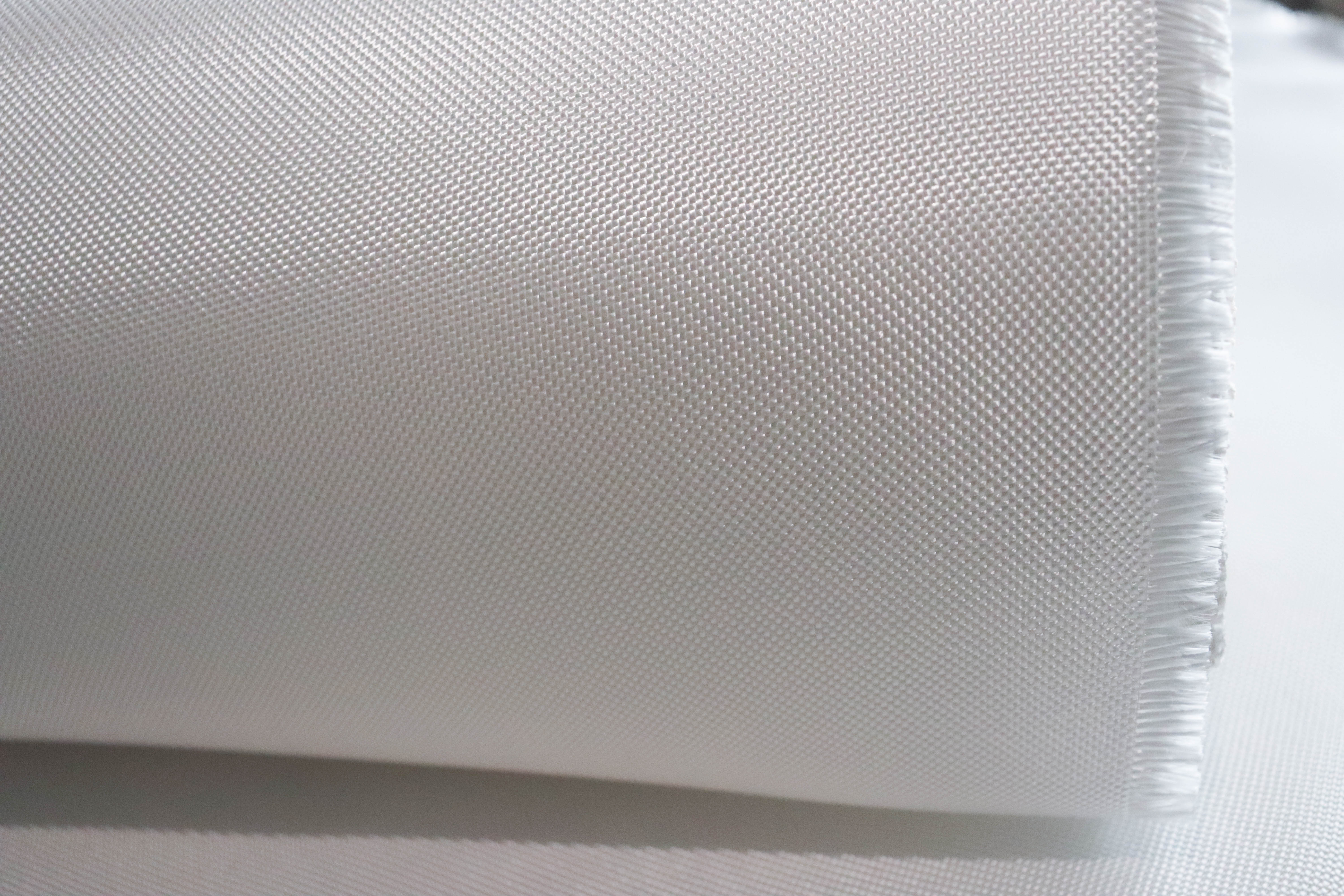

High Silica Plain Cloth (2)
High Silica Plain Cloth (3)
